Grand Seiko Evolution 9: Calibre 9SA5

For Grand Seiko's 60th anniversary in 2020, the manufacture released not an updated edition of an existing model but an entirely new movement — nine years in development — housed in an entirely new case design. The result is the Evolution 9 collection and Calibre 9SA5 , the most technically ambitious mechanical movement Grand Seiko has produced.

The 9SA5 runs at 36,000 vph (Hi-Beat), achieves 80 hours of power reserve, and does so with a new escapement architecture — the Dual Impulse Escapement — that transmits power to the balance wheel more efficiently than a conventional Swiss lever escapement. It is, in every measurable parameter, an improvement on the Hi-Beat 9S85 that preceded it.

Development — Nine Years

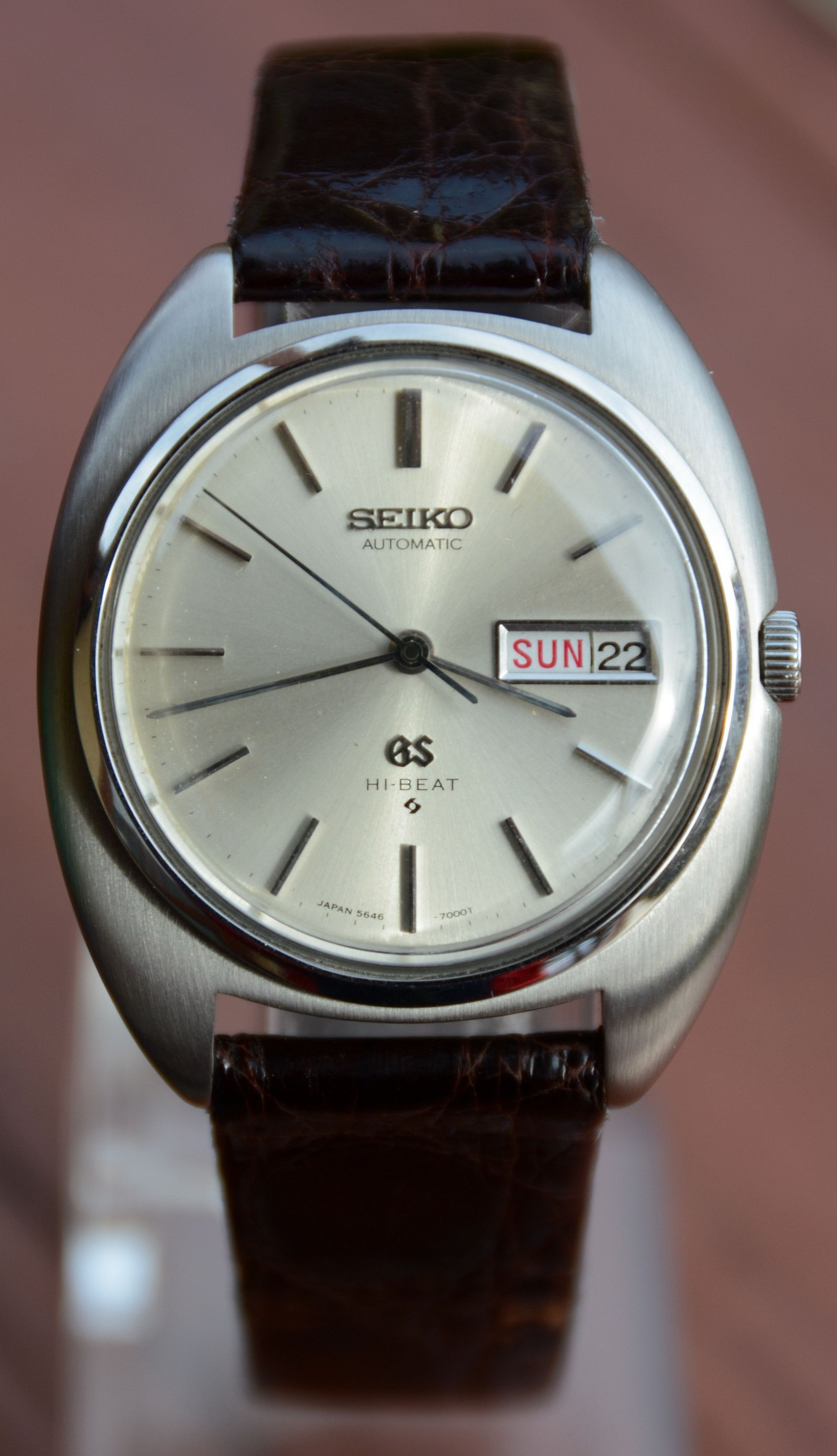

Grand Seiko's Hi-Beat tradition begins with the 1968 45GS Hi-Beat — a movement running at 36,000 vph at a time when most Swiss movements ran at 18,000 or 21,600 vph. The current Hi-Beat programme is centred on the 9S85 (introduced 2010), which runs at 36,000 vph with a 55-hour power reserve.

The problem the 9SA5 was designed to address: at 36,000 vph, the escapement and balance wheel consume more energy per unit time than at lower frequencies. The higher the frequency, the shorter the power reserve for a given mainspring capacity — unless the movement transmits energy to the balance more efficiently.

Development of the 9SA5 began approximately 2011 and was completed in 2020. The central engineering challenges were:

1. A new escapement architecture that would recover power reserve at high frequency
2. A balance wheel and hairspring design optimised for the 36,000 vph regime
3. Manufacturing processes that could achieve the required tolerances

All three were solved in the 9SA5. The resulting movement achieves 80 hours of power reserve at 36,000 vph — compared to the 9S85's 55 hours at the same frequency.

The Dual Impulse Escapement

The conventional Swiss lever escapement — the standard in mechanical watchmaking for over 200 years — works as follows: the pallet fork's entry and exit pallets lock and release the escape wheel teeth alternately, and the fork transfers an impulse to the balance roller jewel each time it swings. The pallet fork must be lifted slightly each cycle to release the next tooth — this lifting action, multiplied across 36,000 half-oscillations per hour, represents a significant fraction of the movement's total energy budget.

Grand Seiko's Dual Impulse Escapement (DIE) addresses this by using two different power transmission paths depending on the direction of the balance's swing:

Direct impulse direction: The escape wheel tooth engages directly with a specially shaped impulse jewel on the balance roller, bypassing the pallet fork entirely. Energy transfers from escape wheel to balance with minimal friction loss — no fork lifting required.

Indirect impulse direction: The conventional Swiss lever action operates — the escape wheel tooth unlocks the pallet fork, which transfers energy to the balance. This retains the positioning security and shock protection of the lever escapement.

The result is that the balance receives a direct, lower-friction impulse half the time, and a conventional indirect impulse the other half. The net efficiency improvement is what recovers the power reserve: the 9SA5 achieves 80 hours at 36,000 vph where the 9S85 achieves 55 hours at the same frequency.

MEMS manufacturing: The escape wheel and pallet fork are manufactured using MEMS (Micro Electro Mechanical Systems) photolithographic technology, achieving tolerances of one ten-thousandth of a millimetre — tolerances not achievable by conventional machining at watch scale.

Calibre 9SA5 — Full Specifications

• Type: Self-winding (automatic) mechanical, Hi-Beat
• Diameter: 31.6 mm
• Thickness: 5.18 mm
• Jewels: 47
• Frequency: 36,000 vph (10 beats per second)
• Power reserve: 80 hours
• Accuracy: +5/−3 seconds per day
• Escapement: Dual Impulse Escapement
• Balance: Free-sprung, four adjustable gold poising screws; supported by twin balance bridge (top and bottom)
• Hairspring: Overcoil configuration, curve geometry determined after over 80,000 computer simulations
• Development period: 9 years

The twin balance bridge — securing the balance staff at both ends — is a structural choice that improves stability under shock and positional change, contributing to the +5/−3 accuracy across positions.

Evolution 9 Design Language

The Evolution 9 collection introduced a new visual vocabulary alongside the new movement. The case design is more complex and architecturally assertive than the Heritage Collection:

• Multi-surface faceted lugs with both mirror-polished and hairline-brushed planes, sharply separated
• Pronounced bezel with a complex Zaratsu-polished profile
• Larger, more assertive indices and hands than Heritage Collection designs
• Full Zaratsu polish on all mirror surfaces throughout the case
• 40 mm case diameter — slightly larger than many Heritage Collection references

The design references the geometric precision of Grand Seiko Style (the nine design principles codified in 1967) while applying them to a more dramatic contemporary architecture.

SLGH002 and SLGH003 — The 60th Anniversary Introductions

SLGH002 — White Dial (100 pieces, 18-karat yellow gold)
- Case: 18-karat yellow gold, 40 mm diameter, 11.7 mm thick
- Dial: White, texturally evocative of birch trees in winter
- Movement: Calibre 9SA5
- Limited edition: 100 pieces worldwide
- Original retail: Approximately EUR 45,000
- Released: August 2020, Grand Seiko boutiques only
- Significance: The first watch to introduce the Evolution 9 design language and the 9SA5 movement

SLGH003 — Vivid Blue Dial (1,000 pieces, stainless steel)
- Case: Stainless steel, 40 mm, 11.7 mm thick
- Dial: Vivid blue
- Movement: Calibre 9SA5
- Limited edition: 1,000 pieces
- Original retail: US$9,700
- Released: December 2020

The SLGH003's blue dial brought the 9SA5 to the steel and blue-dial segment that Grand Seiko collectors had responded to strongly with the Snowflake — a calculated choice for the second release, making the new movement more accessible while the SLGH002 established it as a prestige platform.

SLGH005 — White Dial (stainless steel, ongoing production)
The SLGH005 carried the white dial Evolution 9 configuration into the standard production lineup in stainless steel, extending the 9SA5 beyond the limited anniversary editions.

9SA5 vs. 9S85 — The Performance Comparison

The accuracy figure is identical. The power reserve increase from 55 to 80 hours — at the same frequency — reflects the efficiency gain of the Dual Impulse Escapement. Both movements are made at the Grand Seiko Studio Shizukuishi in Iwate.

Latest News

• Grand Seiko 2026: The Evolution 9 "Birch" Collection Leads Watches & Wonders — September 2, 2026

Frequently Asked Questions

What is Calibre 9SA5?
Grand Seiko's flagship Hi-Beat mechanical movement, introduced 2020. 36,000 vph, 80-hour power reserve, Dual Impulse Escapement, free-sprung balance with twin bridge, 47 jewels, 5.18mm thick. Developed over 9 years.

What is the Dual Impulse Escapement?
A new escapement architecture using two power transmission paths: one that delivers a direct impulse from the escape wheel to the balance roller (bypassing the pallet fork), and one using the conventional Swiss lever action. The direct impulse reduces friction loss, recovering power reserve at high frequency.

What is the Evolution 9 collection?
The design language introduced alongside the 9SA5 in 2020 — featuring more complex multi-surface case architecture, larger indices and hands, and pronounced Zaratsu-polished case geometry compared to the Heritage Collection.

What was the SLGH002?
The first Evolution 9 watch: 18-karat yellow gold, 40mm, white dial, Calibre 9SA5, limited to 100 pieces, released August 2020 at approximately EUR 45,000.

How does the 9SA5 compare to the 9S85?
Both run at 36,000 vph with +5/−3 seconds/day accuracy. The 9SA5 achieves 80 hours power reserve versus the 9S85's 55 hours — the improvement coming from the Dual Impulse Escapement's greater energy efficiency.
